- Designed to eliminate smelly odours in hydroponic grow rooms while also regulating temperature, circulating air, and cooling equipment closets.
- Integrated PWM-based 8-speed manual controller. Check out the T-Series if you're interested in adjusting the temperature and humidity of your home.
- Energy-efficient and silent operation is achieved by using a PWM-controlled EC motor with a mixed-flow design.
- An AC power cord and all necessary mounting hardware are included in the kit.
- High-Velocity Airflow, Low Noise Level, Dual Ball-Bearing Construction, 10-Inch-Diameter Duct, 11-1/5-Inch Height, 48 dBA

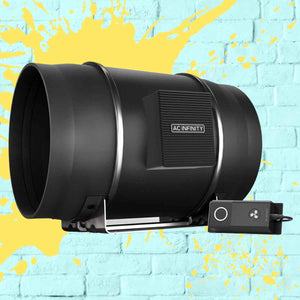

This smart in-duct fan is ideal for quietly ventilation hydroponic grow rooms, adding heating/cooling to rooms, circulating fresh air, exhausting projects, and cooling AV closets. This device makes use of a PWM-based in-line speed controller. High static pressure may be maintained with minimal noise thanks to the mixed-flow design and electric brushless motor combination. The motor box, which contains the fan's impeller and blades, can be detached from the mounting frame for easy access and cleaning. You'll get one duct fan unit, one corded speed controller, a handbook, and the hardware you need to install it. This product was designed to cooperate with the other components of the UISTM platform of grow devices and smart controllers to provide you the optimal conditions for growing.

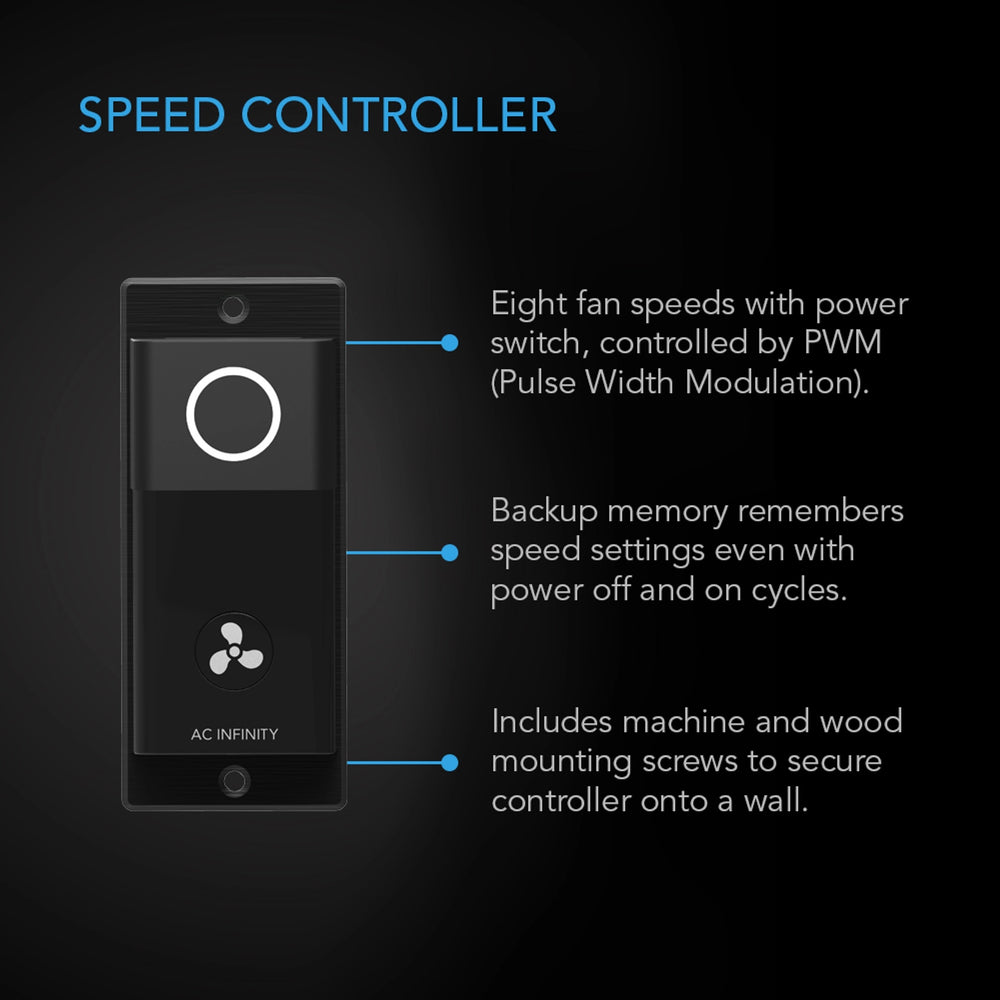

ACCURATE SPEED ADJUSTER
Thanks to the in-line speed controller, the duct fan can be set for either whisper-quiet operation or maximum airflow. Unlike conventional AC-powered duct fans, whose motor speeds must be precisely controlled via voltage suppression, the EC-motor in this model is capable of fine-tuned modulation via pulse width modulation (Pulse Width Modulation). In contrast to the noisy and overheated motors typically associated with variable voltage controllers, the fan's motor may now function silently and efficiently at very low RPMs thanks to this invention. The power may be toggled on and off, and there are eight adjustable speeds. The fan's ability to save settings in a secondary memory makes it adjustable to a wide range of speeds. The smart controller of the CLOUDLINE T10 can communicate with this S10, allowing both devices to follow the same set of commands.
STURDY, QUIET, AND ENERGY-EFFICIENT GEAR

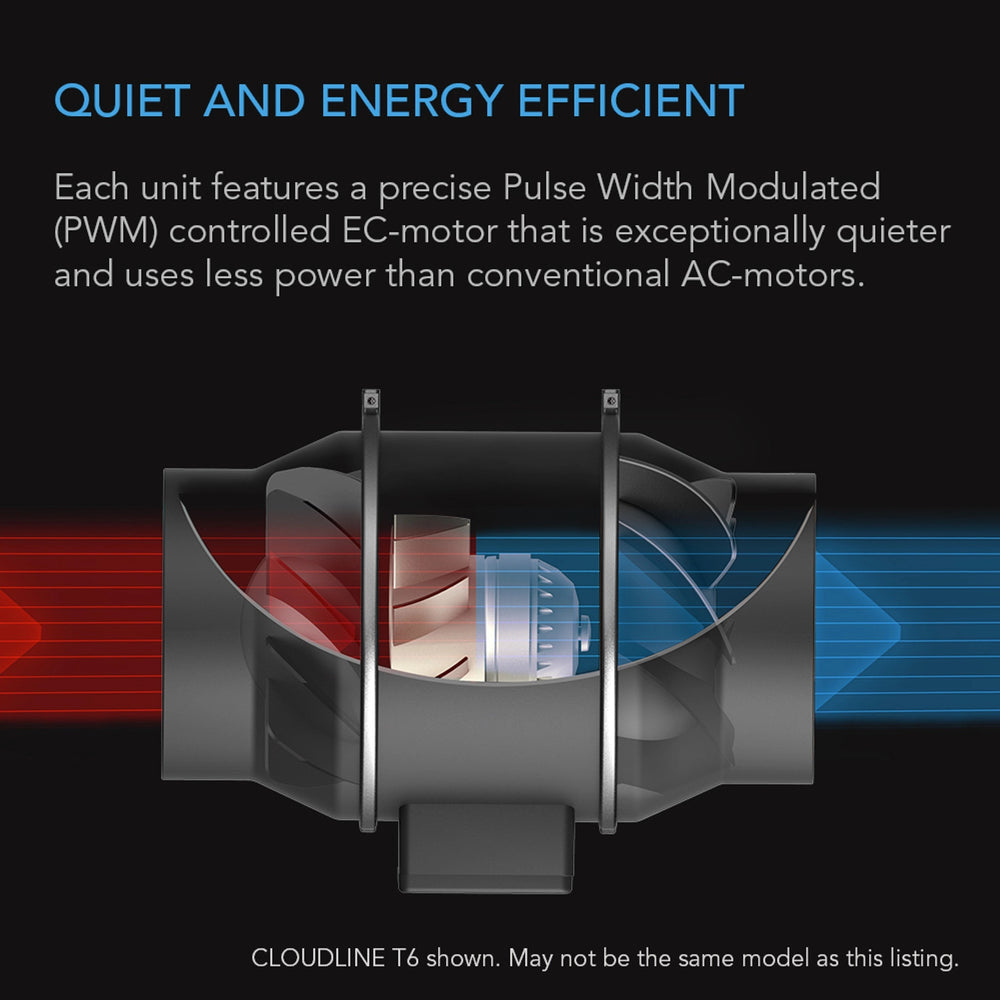

In an inline fan, a combination of two hydrodynamic wind circles and a stator blade provide a mixed flow configuration. As a result of its high static pressure rating, it can deliver air even in spaces with restricted free airflow. The duct fan unit's dual ball bearing motor has a 67,000-hour life span, allowing either horizontal or vertical installation. The IP44 rating ensures that the device is protected against dust and moisture without sacrificing its performance.

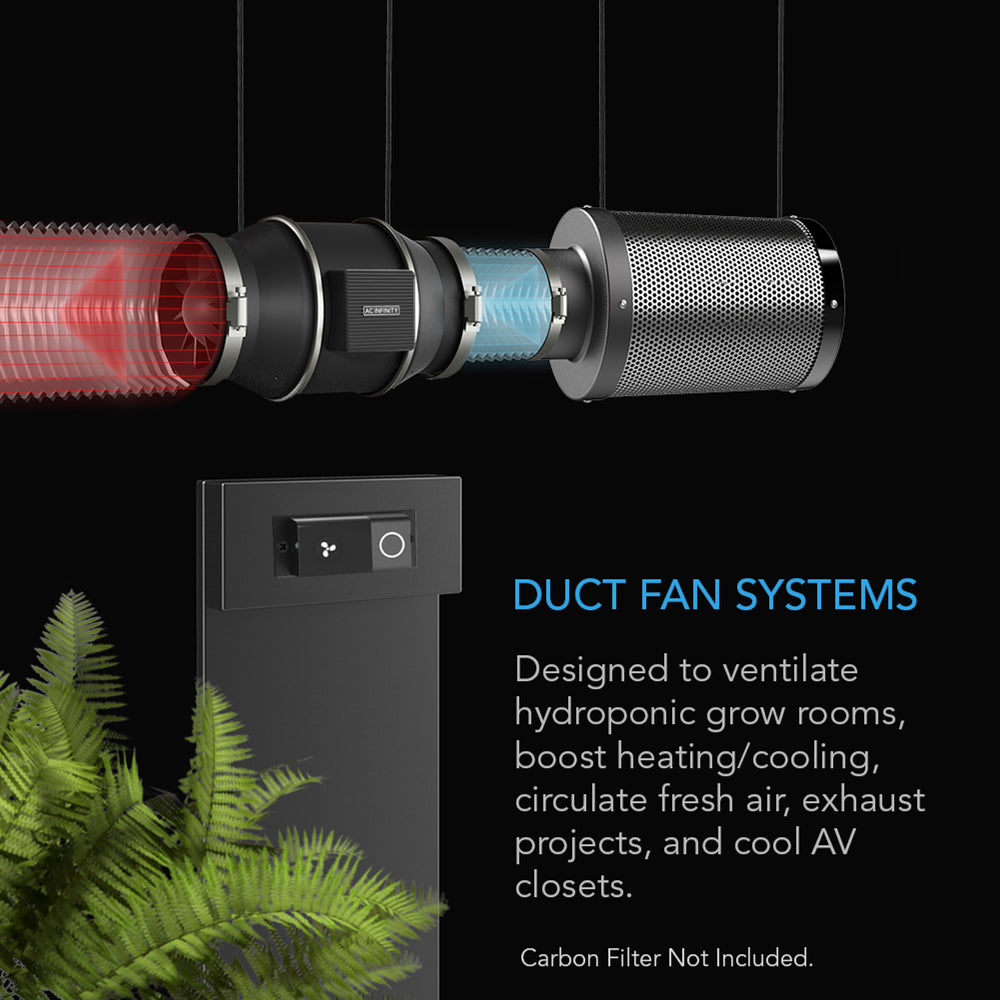

This silent duct fan system has a multitude of applications, one of which is providing environmental management in AV equipment closets, racks, and cabinets. Its low noise and advanced control capabilities make it ideal for hydroponic grow rooms and tents, bathroom and attic exhaust, and other ventilation and air circulation projects.

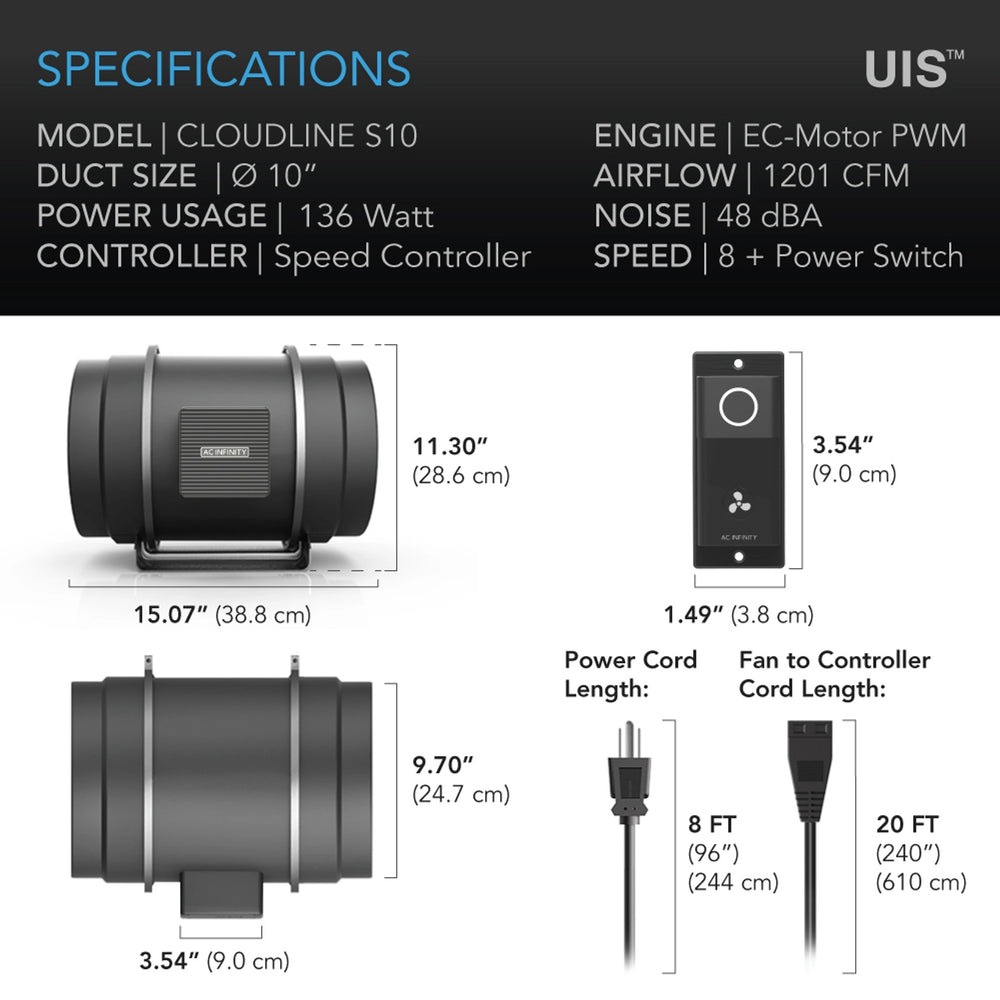

|Manufacturer||AC Infinity Inc.|
|Product Name||CLOUDLINE S10|
|Product and Mounting Dimensions - Fan Unit|
|Total Dimensions||9.81 x 15.20 x 11.30 in. (24.9 x 38.6 x 28.6 cm)|
|Mounting Hole-To-Hole Distance||5.90 x 5.90 in. (15.0 x 15.0 cm)|
|Screw Hole Size||Ø 0.472 in. (Ø 1.2 cm)|
|Cord Length to Controller||240 in. (20 feet)|
|Cord Length to Plug||96 in. (8 feet)|
|Product and Mounting Dimensions - Controller|
|Total Dimensions||3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)|
|Required Mounting Area||2.95 x 0.51 in. (3.6 x 1.3 cm)|
|Hole to Hole Distance||2.87 in. (7.3 cm)|
|Screw Hole Size||Ø 0.157 in. (Ø 0.4 cm)|
|Product Performance and Technical Specs|
|Total Airflow||1201 CFM|
|Total Noise||48 dBA|
|Static Pressure||1059 Pa|
|Max Power Draw||250 W|
|Average Power Usage||136 W|
|Power Connector Type||US Plug (NEMA 1-15 Type-A)|
|Wall Adapter Input||100 to 120V AC|
|Operating Humidity||35 to 85% RH|
|Operating Temperature||32 to 140°F|
|Ingress Protection||IP 44|
|Fan Bearings||Dual Ball|
|Mounting Positions||Horizontal or Vertical|
|L10 Life Expectancy||67,000 Hours|
