Specifically made to remove odours from hydroponic grow rooms, as well as transfer heating and cooling, circulate air, and chill AV closets.
- Includes a PWM-based, manual 8-speed controller. For climate regulation, refer to unit 67.

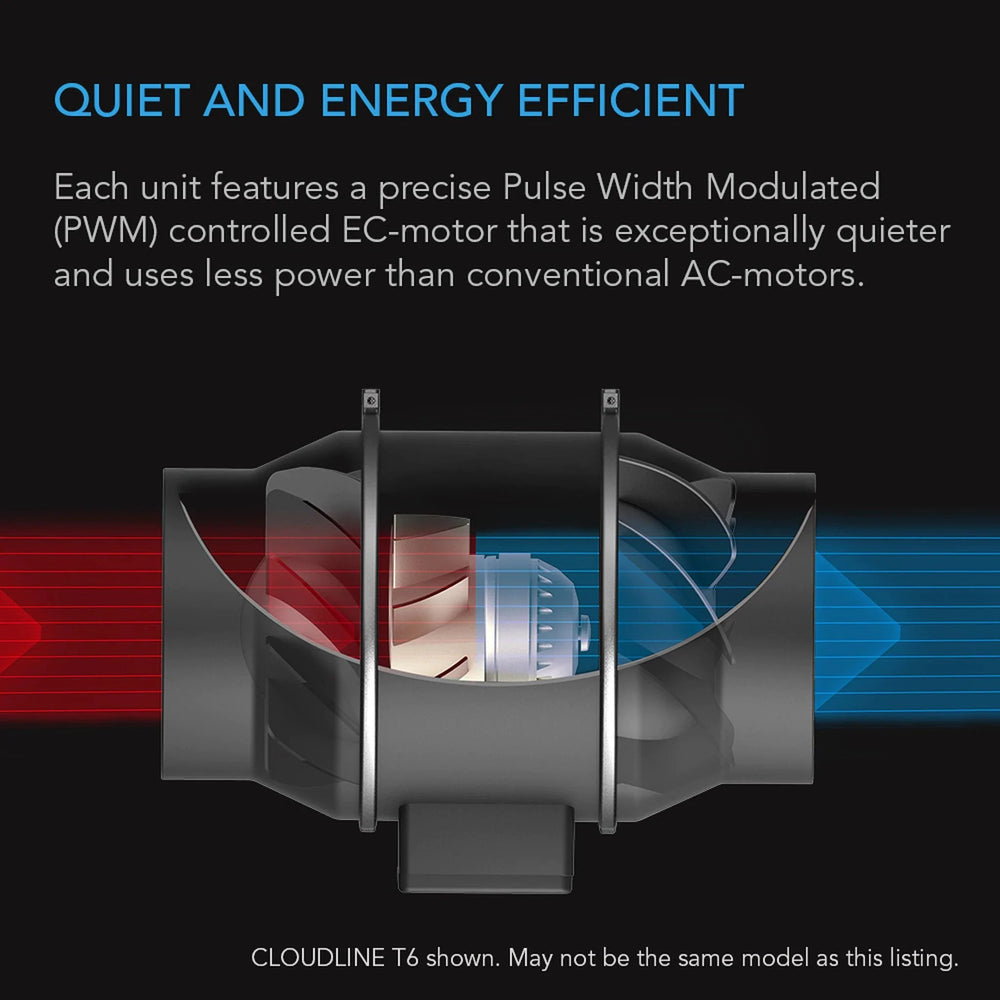

- A PWM-controlled EC motor with a mixed-flow design produce an operation that is both silent and sparing of energy.
- All hardware for installation and an AC power cord are included in the package as well.
- An 8-inch duct, an 11.9-by-9.2-by-8.5-inch body, 807 cubic feet per minute of airflow, 39 decibels of noise, and dual ball bearings are just some of the specs.

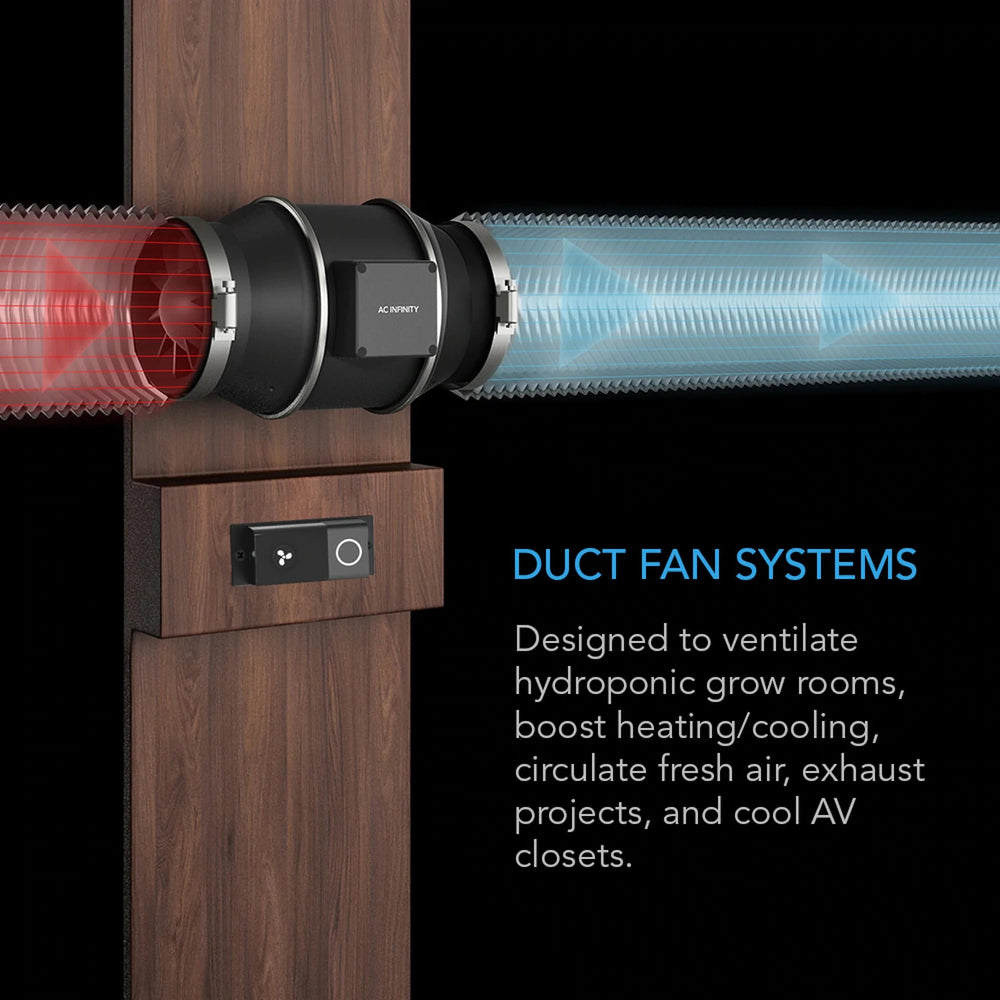

An intelligent in-duct fan made for discreetly ventilating hydroponic grow rooms, increasing heating/cooling to rooms, circulating fresh air, exhausting projects, and chilling AV closets. This unit has a PWM-based in-line speed controller. Features an EC motor and a mixed-flow design to achieve high static pressure with minimal noise. The fan's impeller and blades are housed in a motor box that can be removed from the mounting frame for cleaning and maintenance. One duct fan unit, one corded speed controller, an instruction manual, and all required mounting hardware are included in this full set.
CORRECTOR OF EXACT VELOCITY

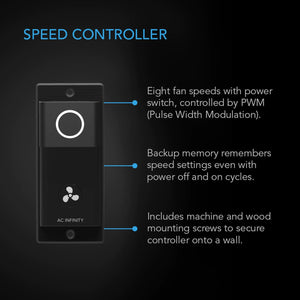

The duct fan's in-line speed controller lets you adjust it for quiet operation or maximum airflow as needed. Unlike standard AC-powered duct fans, which use voltage suppression to regulate fan speeds, the EC-motor in this model may be precisely modulated by pulse width modulation (Pulse Width Modulation). Because to this innovation, the fan's motor may operate quietly and efficiently at very low RPMs, unlike the noisy and hot motors often associated with variable voltage controllers. Power on/off and eight different speeds are available. The fan's capacity to store data in a backup memory means that it can be set to operate at a variety of different speeds.
DURABLE, QUIET, AND POWER-SAVING TECHNOLOGY
The inline fan's stator blade and two hydrodynamic wind circles create a mixed flow configuration. Because of this, it can provide airflow even in environments where free airflow is limited, thanks to its high static pressure rating. Due to the motor's twin ball bearings with a 67,000-hour rating, the duct fan unit can be installed in either orientation. The unit's IP44 rating means it can withstand tough conditions and is impervious to dust and moisture without compromising its functionality.
This silent duct fan system is widely used for a wide range of tasks, including climate control in AV equipment closets, racks, and cabinets. It's used for hydroponic grow rooms and tents, bathroom and attic exhaust, and other ventilation and air circulation projects because to its low noise and sophisticated control features.
|Manufacturer||AC Infinity Inc.|
|Product Name||CLOUDLINE S8|

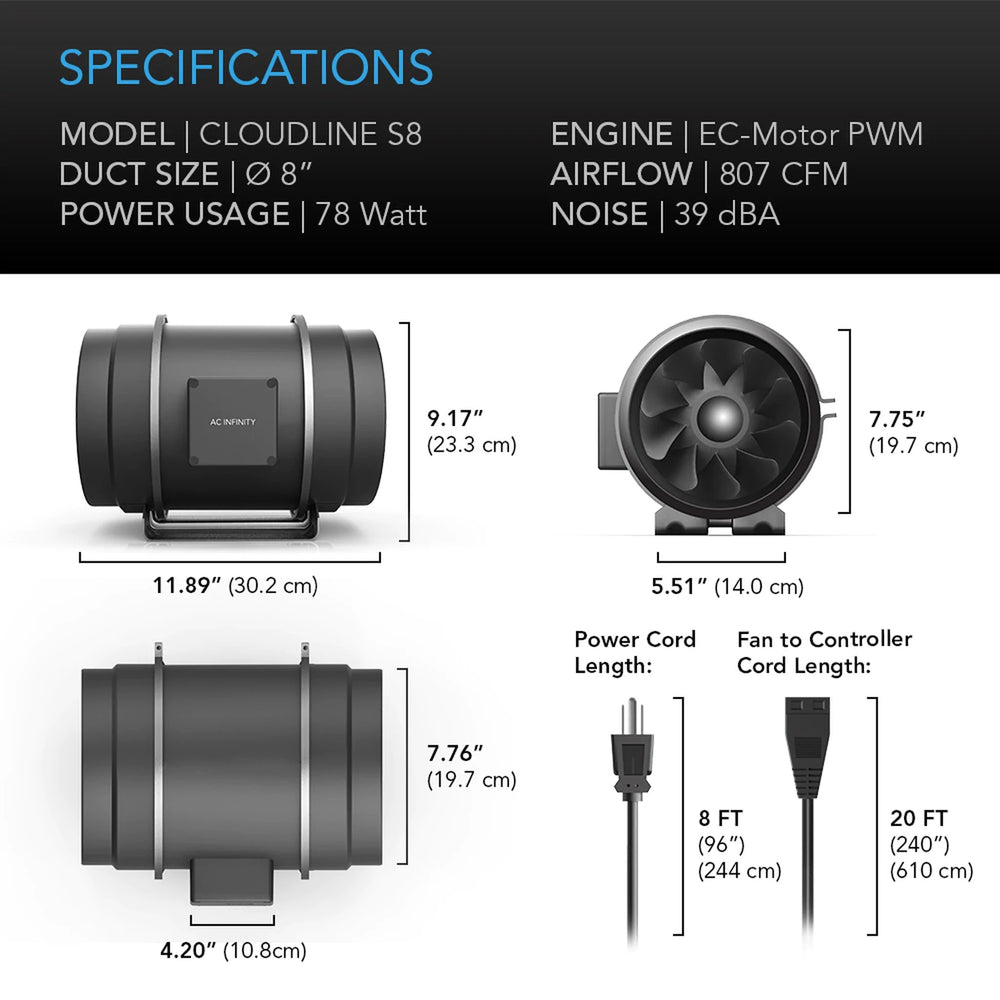

|Product and Mounting Dimensions - Fan Unit|
|Total Dimensions||8.54 x 11.89 x 9.17 in. (21.7 x 30.2 x 12.3 cm)|
|Mounting Hole-To-Hole Distance||3.94 X 3.70 in. (10.0 x 9.4 cm)|
|Screw Hole Size||Ø 0.217 in. (Ø 0.55 cm)|
|Cord Length to Controller||240 in. (20 feet)|
|Cord Length to Plug||96 in. (8 feet)|

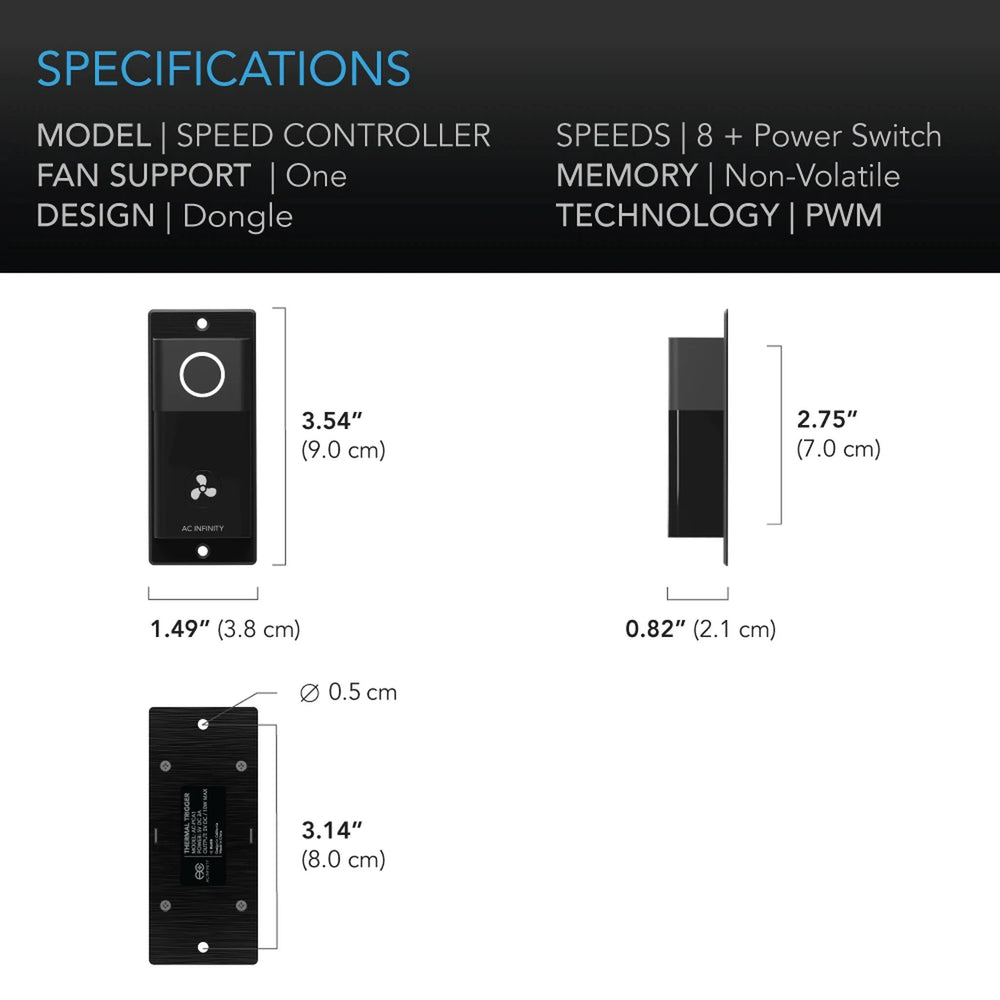

|Product and Mounting Dimensions - Controller|
|Total Dimensions||3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)|
|Required Mounting Area||2.95 x 0.51 in. (3.6 x 1.3 cm)|
|Hole to Hole Distance||2.87in. (7.3 cm)|
|Screw Hole Size||Ø 0.157 in. (Ø 0.4 cm)|
|Product Performance and Technical Specs|
|Total Airflow||807 CFM|
|Total Noise||39 dBA|
|Static Pressure||746 Pa|
|Max Power Draw||110 W|
|Average Power Usage||78 W|
|Power Connector Type||US Plug (NEMA 1-15 Type-A) + plug converter|
|Operating Humidity||35 to 85% RH|
|Operating Temperature||0 to 140°F|
|Ingress Protection||IP 44|
|Fan Bearings||Dual Ball|
|Mounting Positions||Horizontal or Vertical|
|L10 Life Expectancy||67,000 Hours|
|Fan Quality Approvals||CE, RoHS|
