6" S6 Cloudline Inline Fan - AC Infinity

- £-124.99
  • £124.99
Taxes incluses.


Made to silently circulate air, transfer heat or air conditioning to other rooms, move odours outside, and cool electronic equipment racks.

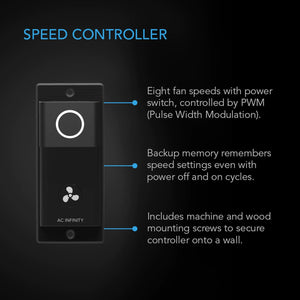

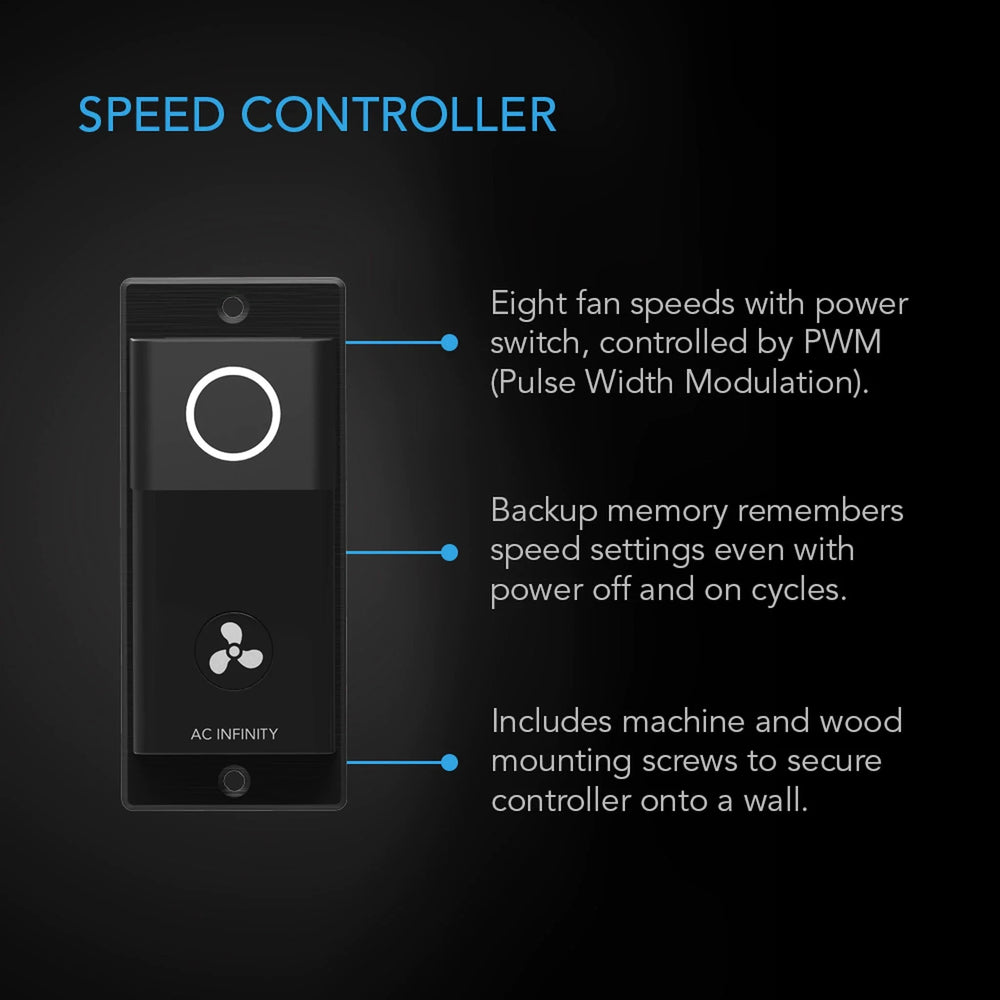

  • Includes a PWM-based, manual 8-speed controller. For settings related to humidity and temperature, refer to controller 67.

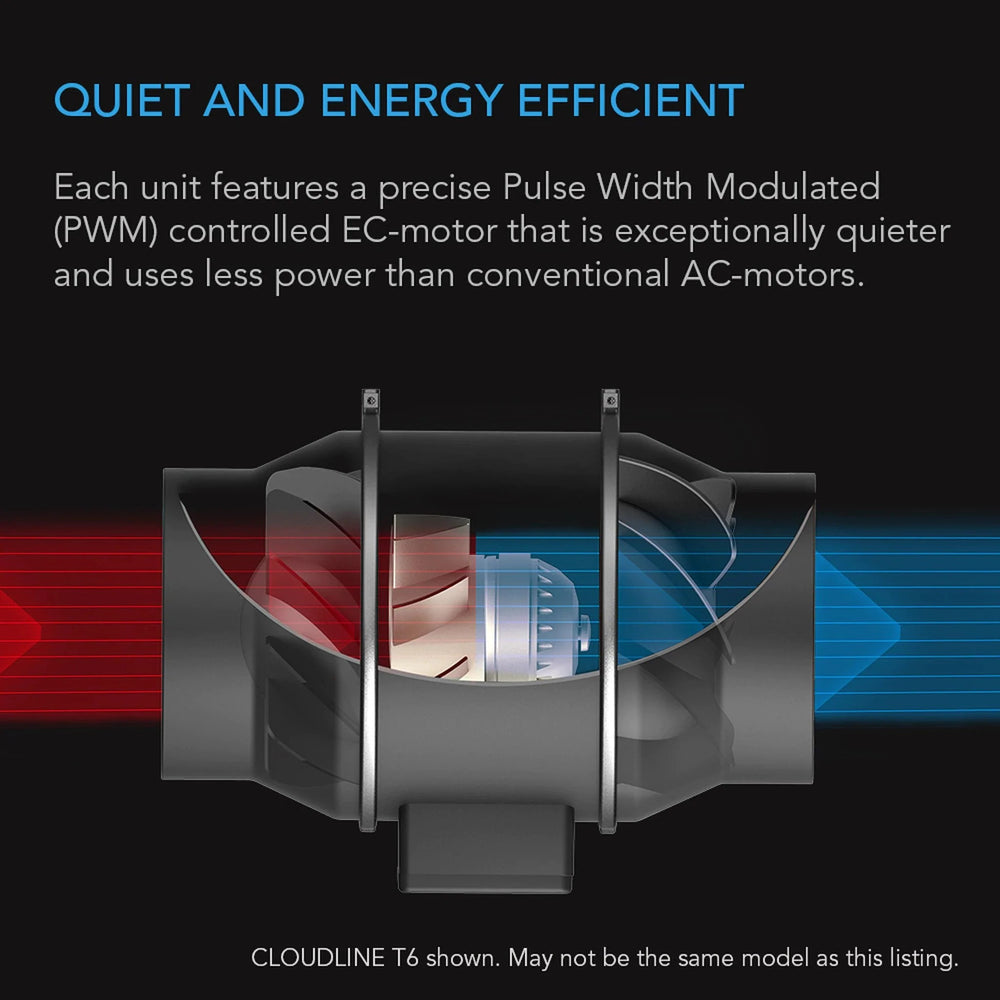

  • The PWM-controlled EC motor and the mixed-flow design produce an operation that is both silent and efficient.
  • In addition to the power adapter, the installation guide, and the brackets, the kit also contains an AC power cord.
  • There is a 6" duct, it is 7.9 x 12.6 x 8.4 inches in size, it has a 402 CFM airflow, a 32 dBA noise level, and dual ball bearings.

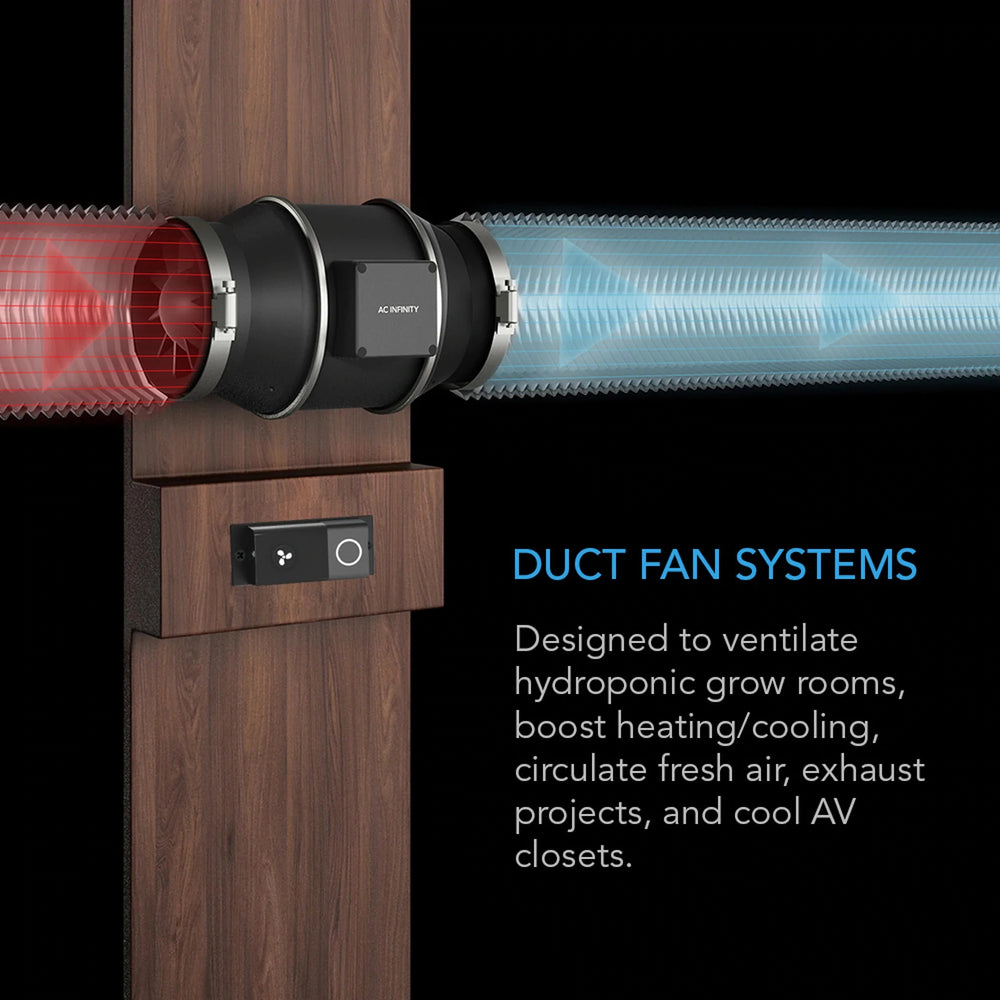

    The purpose of the duct fan system is to discreetly cool AV equipment rooms and closets, as well as ventilate a variety of air circulation and exhaust projects. PWM-technology-based in-line speed controller is included.

    The inline mixed-flow architecture of the duct fan allows it to continue moving air even when subjected to significant static pressure. With its EC-motor, it runs quietly and efficiently while saving on electricity.

    Fan maintenance is simplified by the fact that the motor box, which houses the fan's impeller and blades, may be removed from the mounting frame. One duct fan unit, one inline speed controller, an instruction manual, and all required mounting hardware are included in this all-inclusive package.


    The duct fan's in-line speed controller lets you adjust it for quiet operation or maximum airflow as needed. This duct fan is powered by AC, however unlike standard duct fans, its EC-motor can be precisely regulated by pulse width modulation (PWM) (Pulse Width Modulation).

    This innovation eliminates the motor sounds and heat often associated with variable voltage controllers, allowing the fan to work smoothly at extremely low RPM speeds. It has a power switch with eight different speeds and a memory backup.


    The inline fan's stator blade and two hydrodynamic wind circles create a mixed flow configuration. Because of this, it can provide airflow even in environments where free airflow is limited, thanks to its high static pressure rating.

    The duct fan unit may be installed in any orientation thanks to the motor's two ball bearings, which have a 67,000-hour lifespan. The IP44 rating indicates the unit's resistance to dust and water, and it continues to function well even in these conditions.


    Cooling AV equipment rooms, closets, racks, and cabinets are just some of the many uses for this quiet duct fan system. Hydroponic grow rooms and tents, exhausting bathrooms, and attic installations are just some of the other places you'll find it put to use, thanks to its quiet operation and sophisticated control options.


 Product Identification
   Manufacturer    AC Infinity Inc.
   Product Name    CLOUDLINE S6
   Product Model    AI-CLS6
   UPC Code    819137020306

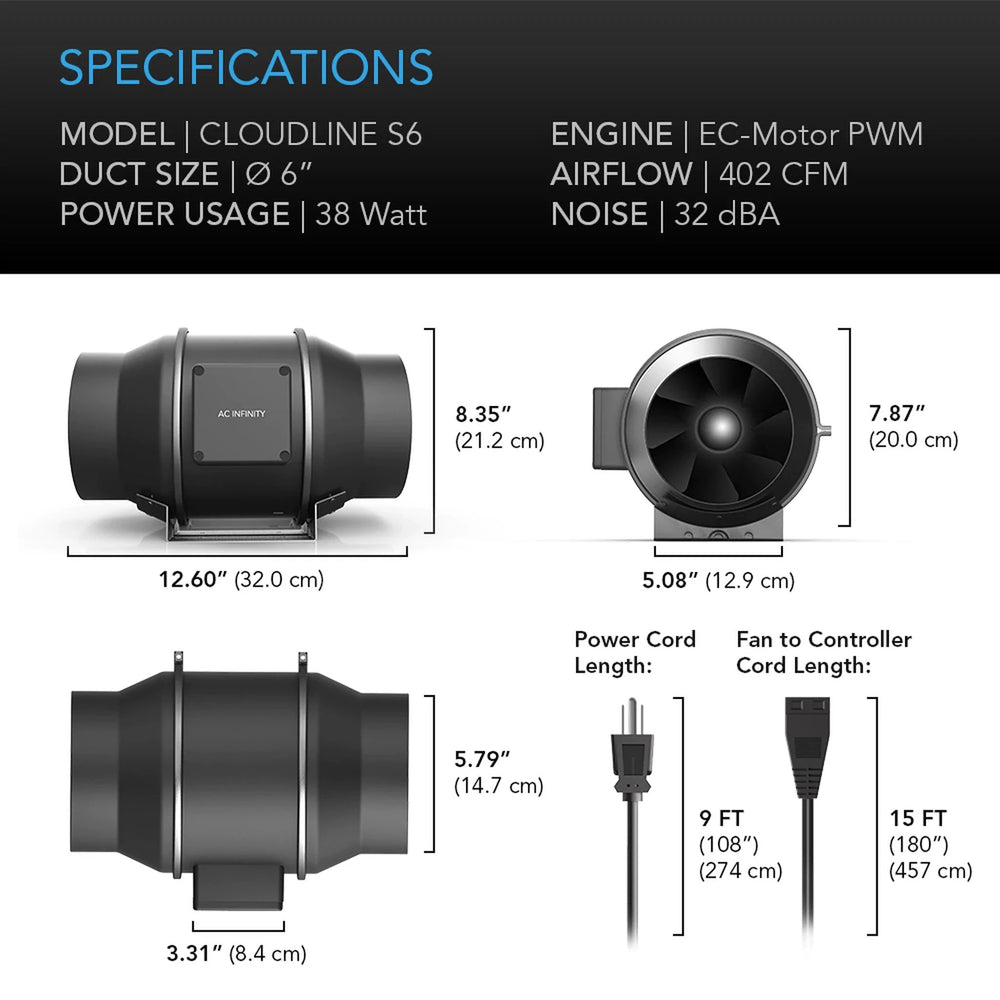

   Product and Mounting Dimensions - Fan Unit
   Duct Size    6"
   Total Dimensions    7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm)
   Mounting Hole-To-Hole Distance    3.15 X 2.36 in. (8.0 x 6.0 cm)
   Screw Hole Size    Ø 0.236 in. (Ø 0.6 cm)
   Cord Length to Controller    180 in. (15 feet)
   Product and Mounting Dimensions - Controller
   Total Dimensions    3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
   Required Mounting Area    2.95 x 0.51 in. (3.6 x 1.3 cm)
   Hole to Hole Distance    2.87in. (7.3 cm)
   Screw Hole Size    Ø 0.157 in. (Ø 0.4 cm)
   Cord Length to Plug    108 in. (9 feet)
   Product Performance and Technical Specs
   Total Airflow    402 CFM
   Total Noise    32 dBA
   Static Pressure    503 Pa
   Voltage    100-240V AC
   Frequency    50/60Hz
   Max Power Draw    64 W
   Average Power Usage    38 W
   Current    1.67 A
   Power Connector Type    US Plug (NEMA 1-15 Type-A) + Converter Plug
   Operating Humidity    35 to 85% RH
   Operating Temperature    0 to 140°F
   Ingress Protection    IP 44
   Fan Bearings    Dual Ball
   Mounting Positions    Horizontal or Vertical
   L10 Life Expectancy    67,000 Hours
   Fan Quality Approvals    CE, RoHS
